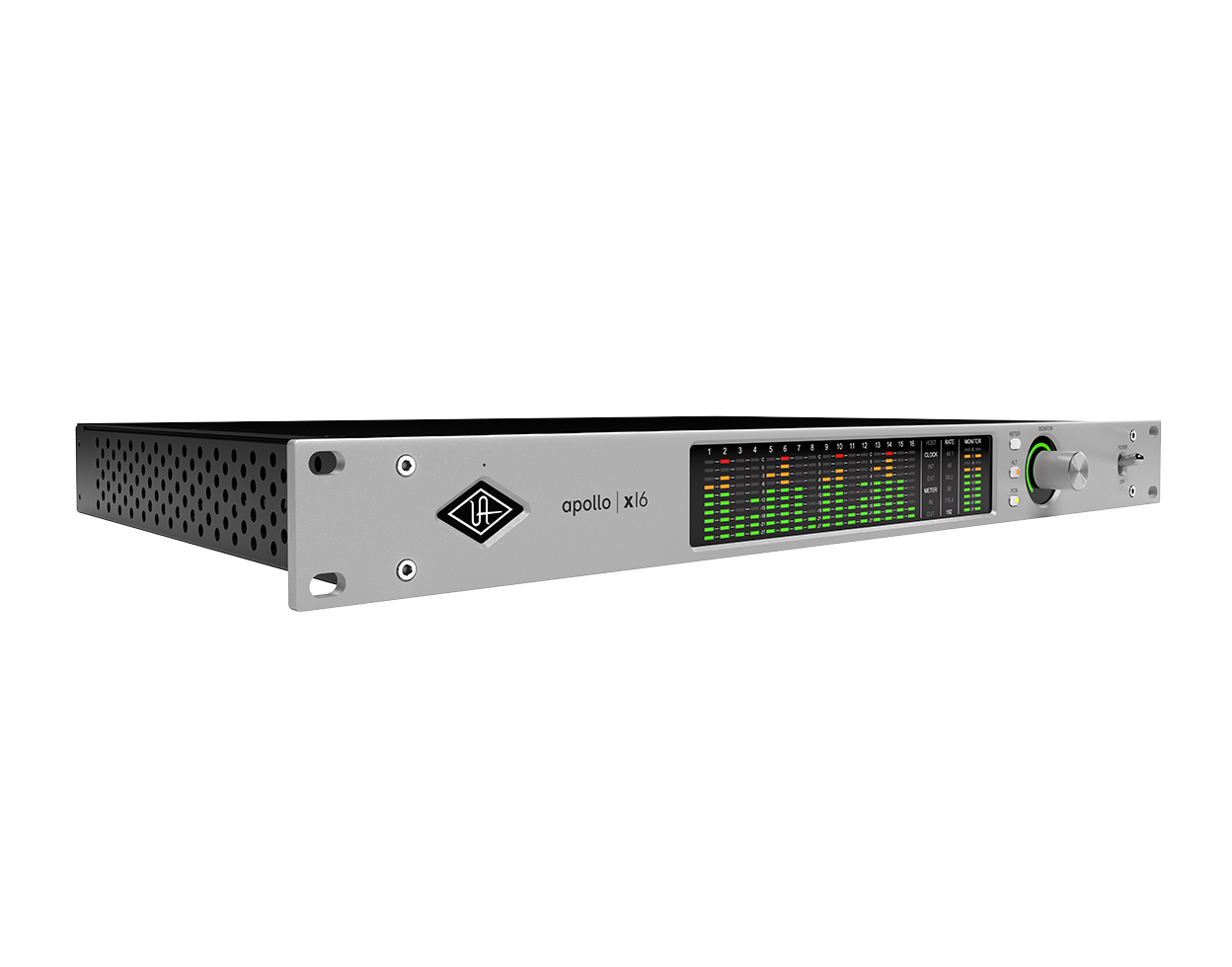

Apollo x16 Heritage Edition Rackmount 18x20 Thunderbolt 3 Audio Interface with Real-Time UAD Processing Review
Live prices and creator coverage for the Apollo x16 Heritage Edition Rackmount 18x20 Thunderbolt 3 Audio Interface with Real-Time UAD Processing - everything in one place.
Our editorial take on the Apollo x16 Heritage Edition Rackmount 18x20 Thunderbolt 3 Audio Interface with Real-Time UAD Processing
The Universal Audio Apollo x16 Heritage Edition is a rackmount audio interface designed for demanding professional recording and mixing environments, featuring 18 inputs and 20 outputs over Thunderbolt 3. Its core strength lies in its real-time UAD processing, aimed at delivering analog-like sound characteristics directly within the recording workflow. As a Heritage Edition, it includes a specific bundle of UAD plug-ins, indicating a focus on users seeking Universal Audio's proprietary processing from the outset.
Connectivity includes robust analog I/O via DB-25 connectors for multi-channel line-level signals, alongside AES3 digital I/O and Word Clock synchronization options. The interface boasts impressive dynamic range and low THD+N figures across its inputs and outputs, suggesting high fidelity audio conversion suitable for critical applications. Its 1U rackmount form factor makes it well-suited for permanent studio installations where space and integration are key.
Consideration for this interface depends on a user's existing setup and their need for Universal Audio's real-time UAD processing ecosystem. Its high-end specifications and dedicated I/O are aimed at professional studios rather than portable or entry-level setups. The absence of certain features like MIDI I/O, phantom power, and dedicated microphone inputs highlights its specialized role as a line-level workhorse.
- Real-time UAD processing built-in for analog sound characteristics
- High-fidelity AD/DA conversion with excellent dynamic range (up to 133 dBA monitor outputs) and low THD+N
- Extensive analog I/O via DB-25 for multi-channel line-level connections
- Flexible synchronization options with Word Clock and AES3 I/O
- Low latency performance at 1.1 ms at 96 kHz
- No dedicated microphone inputs or phantom power, limiting direct mic recording
- Lacks MIDI I/O, requiring external solutions for MIDI control
- No built-in display for detailed metering, relying on a multi-segment LED meter
- Requires an available Thunderbolt 3 port and Intel Core i7 processor
- Physically large and heavy at 19 x 13.5 x 1.8 inches and 9.0 lbs for a 1U device
Synthesized by Geared editors from early expert reviews.
Community ratings
Real ratings from people who own the gear.
No written reviews yet. Be the first to share your thoughts.
About this product
The Universal Audio Apollo x16 Heritage Edition Rackmount 18x20 Thunderbolt 3 Audio Interface is a professional audio interface designed for recording and mixing. It features real-time UAD processing for rich, analog sound and flexible connectivity options for studio integration. This Heritage Edition offers a special bundle of UAD plug-ins.
Specs
- Pad
- No
- Weight
- 9.0 lb / 4.1 kg
- Display
- 18x Multi-Segment LED Meter
- Latency
- 1.1 ms at 96 kHz (Input to Output)
- Midi I/O
- No
- Sync I/O
- 1x BNC Word Clock Input 1x BNC Word Clock Output
- Wireless
- -
- Solo Mute
- Mute per Master
- Bit Depths
- 24-Bit (AD/DA Conversion)
- Dimensions
- 19 x 13.5 x 1.8" / 48.3 x 34.3 x 4.6 cm (Including Controls and Protrusions)
- Form Factor
- Rackmount
- Network I/O
- No
- Built In Dsp
- -
- Sample Rates
- -
- Sync Sources
- AES3, Internal, Word Clock
- Usb Non-Host
- No
- Phantom Power
- No
- Ac Input Power
- 100 to 240 VAC, 50 / 60 Hz
- Rackmount Size
- 1 U
- Expansion Slots
- No
- Analog Audio I/O
- 2x DB-25 Line/8-Channel Input 2x XLR 3-Pin Monitor Output 2x DB-25 Line/8-Channel Output
- High Pass Filter
- No
- Os Compatibility
- macOS 10.12 to 10.15 / Windows 10 or Later
- Digital Audio I/O
- 1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Output
- Required Hardware
- Available Thunderbolt 3 Port
- Thd+N Line Inputs
- -115 dB / 0.00018% (1 kHz, +23 dBu Input)
- Power Requirements
- AC/DC Power Adapter (Included)
- Thd+N Line Outputs
- -123 dB / 0.000068% (1 kHz, at -1 dBFS)
- Ac Dc Power Adapter
- 12 VDC at 6 A (Included)
- Built In Microphone
- -
- Impedance Word Clock
- 75 Ohms
- Storage Requirements
- 6 GB
- Impedance Line Inputs
- 10 Kilohms
- Maximum Sampling Rate
- 192 kHz / 24-Bit
- Processor Requirement
- Intel Core i7
- Thd+N Monitor Outputs
- -129 dB / 0.000037% (1 kHz, at -1 dBFS)
- Media Memory Card Slot
- No
- Sample Rate Conversion
- No
- Host Connection Protocol
- Thunderbolt 3
- Dynamic Range Line Inputs
- 124 dBA
- Power Consumption Maximum
- 72 W (Maximum)
- Power Consumption Typical
- 30 W (Typical)
- Dynamic Range Line Outputs
- 127 dBA
- Mobile Device Compatibility
- No
- Number Of Microphone Inputs
- No
- Dynamic Range Monitor Outputs
- 133 dBA
- Clocking Word Clock Lock Range
- 44.1 to 192 kHz ±4% of Sample Rate
- Frequency Response Line Inputs
- 20 Hz to 20 kHz ±0.05 dB
- Impedance Line Monitor Outputs
- 100 Ohms
- Frequency Response Line Outputs
- 20 Hz to 20 kHz ±0.02 dB
- Maximum Input Level Line Inputs
- +24 dBu (Balanced, +4 dBu) +6.2 dBV (Balanced, -10 dBV)
- Frequency Response Monitor Outputs
- 20 Hz to 20 kHz ±0.2 dB
- Clocking Word Clock Input Termination
- 75 Ohms (Switchable)
- Maximum Output Level Line Monitor Outputs
- +24 dBu (+4 dBu) +10 dBV (-10 dBV)
