RED V-RAPTOR [X] 8K VV Review
We've aggregated 1 high-signal review and 0 live retailer prices below.
![RED V-RAPTOR [X] 8K VV](https://nhuylegwzahokxisbbiz.supabase.co/storage/v1/object/public/product-images/products/988/8ae1d0a9a2d39c55.jpg)
Our editorial take on the RED V-RAPTOR [X] 8K VV

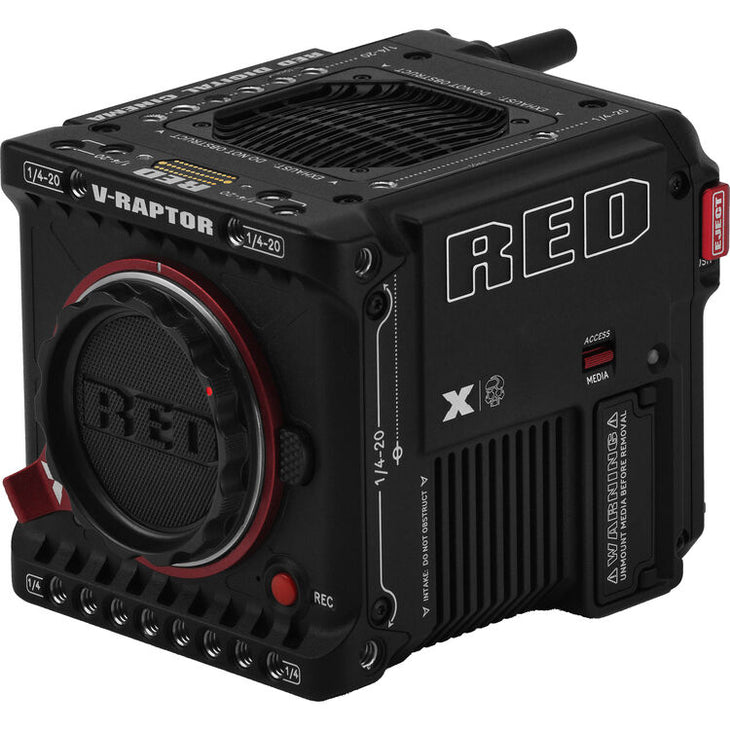

The RED V-RAPTOR [X] 8K VV is a full-frame cinema camera built on RED's DSMC3 platform, featuring an 8K global shutter sensor and a compact, lightweight aluminum body. At under 4 pounds, it offers high-speed shooting up to 120 fps at full 8K resolution and 240 fps at DCI 4K, all captured internally in 16-bit REDCODE RAW. The camera is Netflix-approved and boasts over 17 stops of dynamic range, extendable to 20+ with Extended Highlights. It uses a locking Canon RF mount, making it compatible with a wide range of modern glass.
The V-RAPTOR is designed for productions that demand high resolution, global shutter performance, and portability. Its on-sensor phase-detection autofocus and face detection add versatility for run-and-gun or gimbal work, while dual 12G-SDI outputs and genlock/timecode support keep it production-ready. The camera records to CFexpress Type B media and supports 8K R3D over IP streaming. The small 2.4-inch fixed LCD is non-touch, so most operators will want an external monitor or EVF. At $29,995 for the body, it sits at the premium end of cinema cameras but delivers RED's signature image quality in a notably smaller and more agile package.
- 8K global shutter sensor with high-speed shooting up to 120 fps at full resolution
- Compact and lightweight body at 1800 grams, built on the DSMC3 platform
- Over 17 stops of dynamic range, extendable to 20+ with Extended Highlights
- On-sensor phase-detection autofocus with face detection
- Netflix-approved with internal 16-bit REDCODE RAW recording
- Small 2.4-inch fixed LCD is non-touch and not ideal for monitoring
- No internal stabilization (IBIS) for handheld shooting
Synthesized by Geared editors from early expert reviews.
Best reviews
The highest-signal reviews from creators and editorial blogs.
Community ratings
Tap a star. That's it. Save the words for the comments below.
0 ratings
Comments
Ask questions, share your experience, reply to other owners.
No comments yet. Start the conversation.
Specs
- Battery
- Micro V-Mount
- Weight Grams
- 1800 g (4 lb)
- Dimensions Mm
- 149.63 x 115.5 x 108 mm (5.89 x 4.5 x 4.3 in)
- Build Material
- Aluminum
- Weather Sealing
- Water and dust-resistant (not waterproof)
- Bit Depth
- 16-bit RAW
- Raw Video
- Internal, REDCODE RAW
- Log Profiles
- RED IPP2
- Internal Codecs
- REDCODE RAW, REDCODE HQ, REDCODE LQ, REDCODE MQ
- Max Frame Rate 4k
- DCI 4K 240p
- Max Frame Rate Hd
- 1080p 480 fps
- Max Video Resolution
- 8K (8192 x 4320)
- Power Input
- 1x LEMO 6-Pin (11 to 17VDC) Input
- Tripod Mount
- 1/4 inch-20 Female (Bottom), 3/8 inch-16 Female (Bottom)
- Dynamic Range
- 17+ stops (up to 20+ with Extended Highlights)
- Video Outputs
- 2x BNC (12G-SDI) Output
- Dsmc3 Platform
- Yes
- Live Streaming
- 8K R3D over IP, 4K via SMPTE ST 2110 (with RED CONNECT module)
- Audio Recording
- 2-Channel, 24-Bit at 48 kHz
- Genlock Timecode
- 1x 9-Pin (Genlock, RS-232) Control/Data Input/Output, 1x 9-Pin (Timecode)
- Netflix Approved
- Yes
- Max 8k Frame Rate
- 8K 120 fps
- Built In Microphone
- Mono
- Extended Highlights
- 3+ stops additional dynamic range
- Storage Temperature
- -4 to 122 deg F (-20 to 50 deg C) up to 85% Humidity
- Operating Temperature
- 32 to 104 deg F (0 to 40 deg C)
- Accessory Mount Threads
- 28x 1/4 inch-20
- Sensor Size
- Full-frame (40.96 x 21.6 mm)
- Sensor Type
- Global Shutter CMOS
- Effective Megapixels
- 35.4 MP (8192 x 4320)
- Launch Price Usd
- $29,995
- Dual Native Iso
- No
- Shutter Speed Electronic
- Electronic Global Shutter
- Viewfinder
- Optional, Not Included
- Rear Screen
- Fixed 2.4 inch Non-Touchscreen LCD
- Touchscreen
- No
- Lens Mount
- Canon RF (locking)
- Crop Factor
- 1.0x
- Usb
- USB-C (Control/Data/Video)
- Audio Io
- 1x 1/8 inch (3.5 mm) TRS Stereo Headphone Output, 1x 5-Pin LEMO Mic/Line Input (+48 V Phantom Power)
- Wireless
- Wi-Fi
- Card Slots
- 1x CFexpress Type B (CFast 2.0)
- Ibis
- No
- Af System
- On-sensor phase-detection autofocus
- Subject Detection
- Face detection
